LD216M

Horizonal Directional Drilling (HDD)
Remote Listening Device

Reliable, Light-Weight and Weather Tight

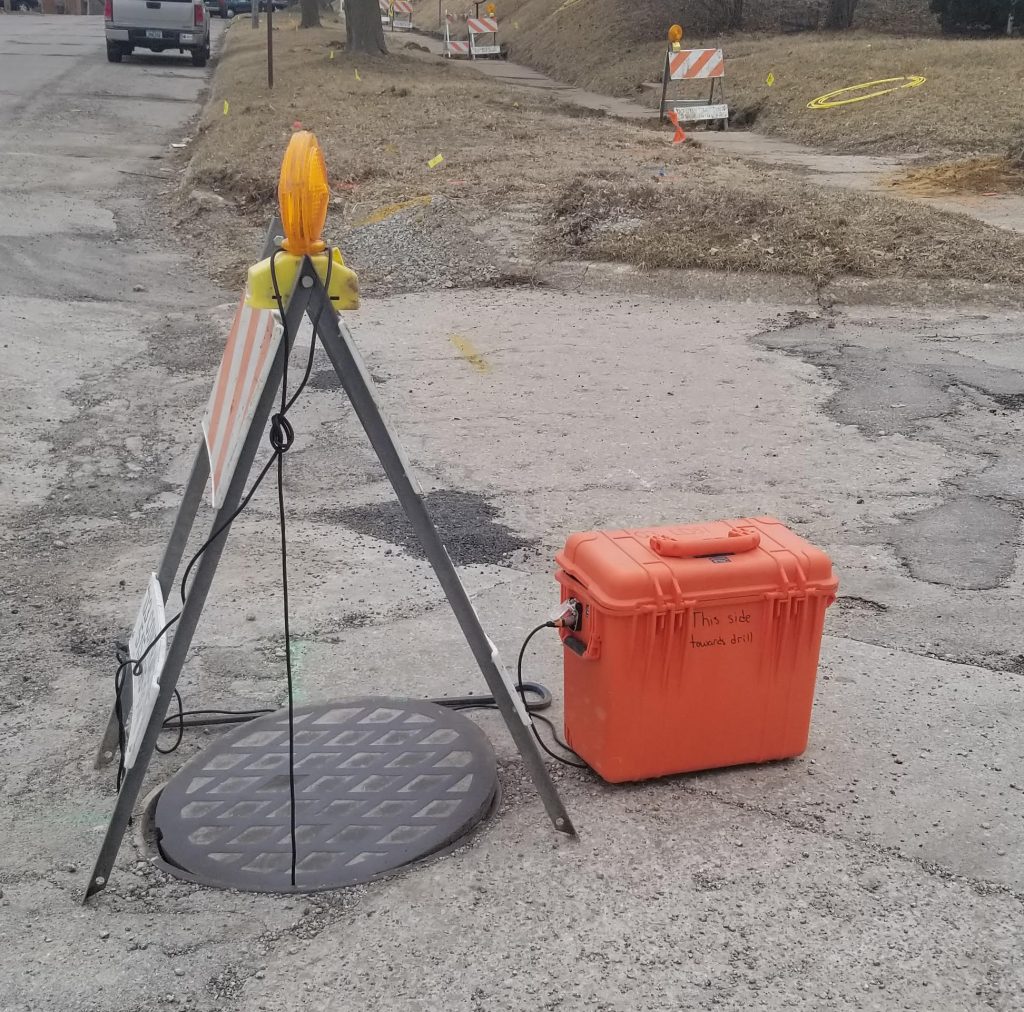

The LD216M Horizonal Directional Drilling Remote Listening Device is a self-contained device that allows an operator to monitor the sound of a drill-head, thus allowing them to identify when and if the drill-head meets an obstruction such as a sewer pipe by placing the included microphone into a manhole to listen to the sound of the drill as it is operated.  When the drill meets an obstacle, there will be a change in the audio which will be immediately recognizable to the operator listening to the receiver belt pack.

(NOTE: Orange color case no longer available)

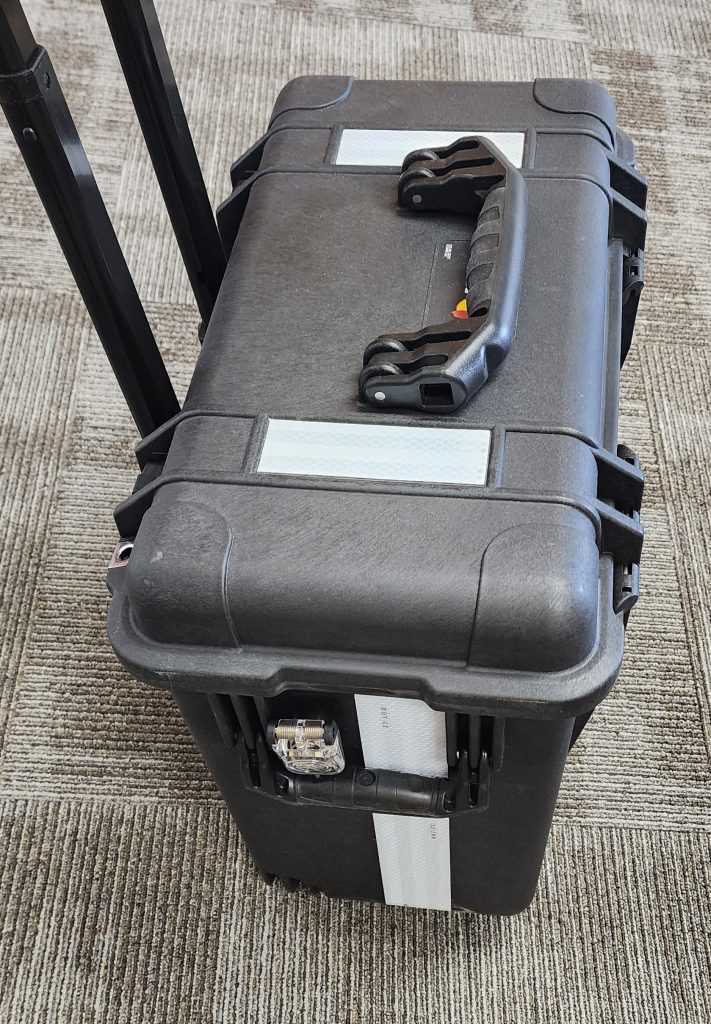

The device is easy to transport thanks to its light-weight design and integrated handle and wheel set.

It is also intuitive to operate – just connect the microphone and microphone cable to the connection port and the device will automatically power on and begin transmitting. The charger uses the same port and will begin to charge as soon as it is plugged in to the multi-function port on the side of the unit.
The lid should be closed and latched while the device is in operation to keep the unit weather tight.

Each new LD216M includes:
1x LD216M Listening Device
2x Receiver Ear Pieces
1x Receiver Belt Pack w/ Belt Clip
1x 10’ Microphone Cable
1x Battery Charger
One-Year Assembly Warranty
(Excludes damages and defects caused by normal wear, abuse, negligence, shipping damage, and natural elements. Hardware components carry their own manufactuers’ respective warranties, as applicable.)


Optional Accessories Include:

Power Breakout Cable and AC power supply:
– Allows LD216M to be run on AC mains power while operating and the battery can also be charged simultaneously while operating

25’ Microphone Cable

10’ Microphone Cable

Spare Microphone

Noise-Reducing Dual-Muff Headset:
– Allows operator to hear the audio in both ears while reducing outside noise

Spare Receiver Belt Pack w/ Belt Clip

Important Operating Notes:

The device automatically powers on when the included microphone cable is connected, off when removed.

The device automatically switches to charge when included charger in connected, off when removed.

The radio channel is selectable on the receiver belt pack and transmitter. These must match for proper operation.

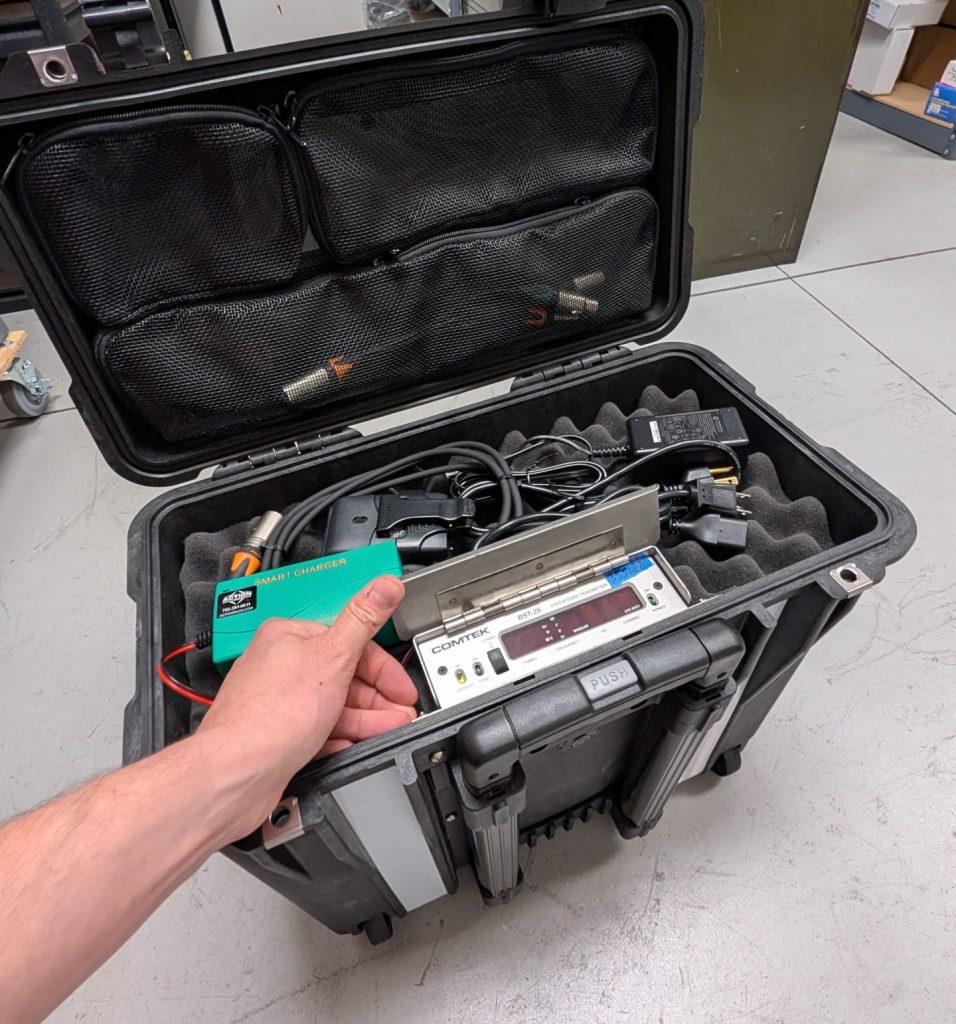

To recharge the built-in maintenance-free battery, use the included green battery charger. The charger light will illuminate red while charging and green when the battery is fully charged. Optionally available, the power breakout cable can be used to both charge the battery and operate the device on AC power at the same time.

For best performance, nothing should be stored on top of the internal foam while the device is in operation. Please use the included lid organizer to store accessories. The device should also remain upright with its lid closed and latched.
